Yealink ZVC860 Video Conferencing System

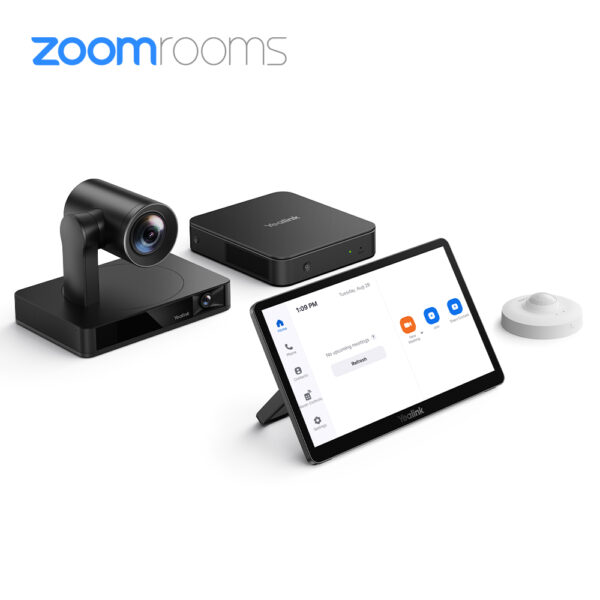

The Yealink ZVC860 is a cutting-edge video conferencing solution, specifically engineered for medium to large conference rooms. This comprehensive package includes the advanced MCore Pro MINI-PC, the intuitive MTouch Plus touch panel, and the UVC86 intelligent 4K PTZ camera, all designed to facilitate seamless and efficient meetings.
Key Components:

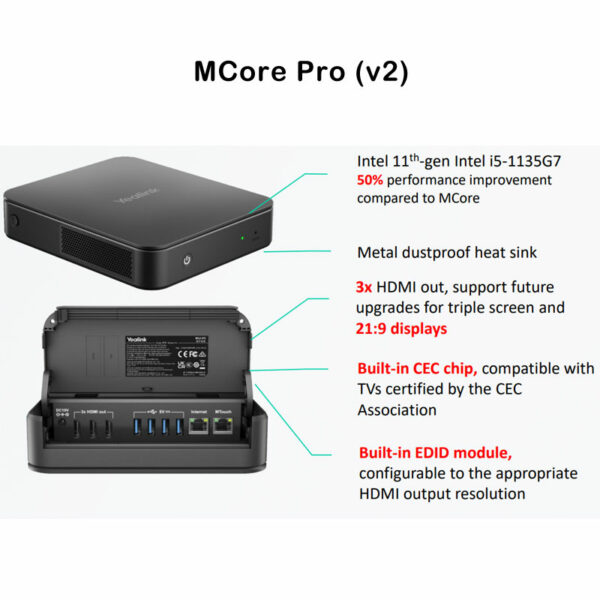

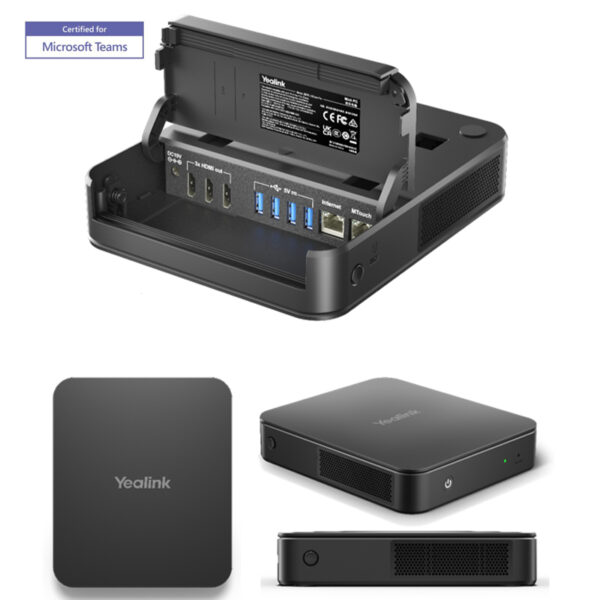

MCore Pro, 3rd Generation MINI-PC
Processor: 11th Gen Intel® Core i5
Memory: 8GB (2 x 4GB)
Storage: 128 GB SSD
Connectivity: 3x HDMI with CEC, Wi-Fi (IEEE 802.11 a/b/g/n/ac/ax), Bluetooth 5.2
Ports: 4 x USB 3.0, 1 Ethernet, 1 Yealink MTouch, Power port, Security lock slot
Features: TPM2.0, Kernel DMA, EDID support
Preloaded with Windows 10 IoT Enterprise X64/Windows 11* IoT Enterprise X64, Zoom Rooms App, Yealink RoomConnect

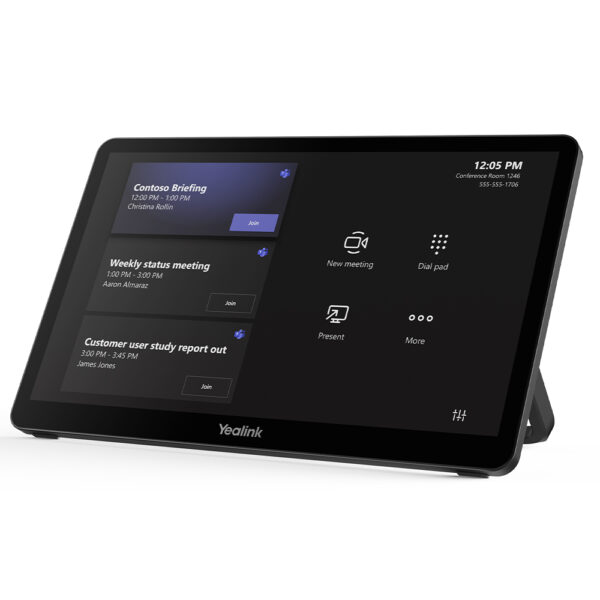

MTouch Plus, 3rd Generation Touch Panel
Display: 11.6-inch IPS with narrow bezel, 1920 x 1080 resolution
Adjustable stand (50° - 180°)
Features: Wired/wireless content sharing, multi-screen control*, third-party screen sharing*, wireless BYOD* support
Connectivity: HDMI, USB-C, supports external PD power supply
Deployment: Desktop placement, desktop fixed, wall-mounted
UVC86 USB PTZ Camera
4K Sensor, 20.4x HD zoom (12x optical, 1.7x digital)
Angles: -90° DFOV, 81° HFOV, 50° VFOV (Telephoto lens); -120° DFOV, 110° HFOV, 78° VFOV (Panoramic lens)
Features: Auto-framing, speaker tracking, presenter tracking, multi-focus, picture-in-picture
Rotation: Horizontal 200°, Vertical 130°
Ports: HDMI output, Yealink microphone, USB 3.0 Type-B, USB 2.0 Type-A, Power, Security Lock, Reset Hole
RoomSensor
Detection angle: 120°, adjustable ±20°
Environment: Operating temperature 0-40℃, humidity 10-95%
Power: Battery-powered with a 4-year lifespan
Unbox & Setup: Yealink ZVC860 for Advanced Video Conferencing
Dive into the advanced Yealink ZVC860, a comprehensive video conferencing solution for medium to large rooms.
This short video guide covers the unboxing and setup of the MCore Pro MINI-PC, MTouch Plus touch panel, and UVC86 4K PTZ camera, highlighting key features and connectivity options for an enhanced meeting experience. Perfect for businesses looking to upgrade their conference technology with ease and efficiency.
